HICON Vittoria Gaming Chair Instruction Manual

1. Úvod

Thank you for choosing the HICON Vittoria Gaming Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Please read these instructions carefully before use and retain them for future reference.

Obrázok: Predná strana view of the HICON Vittoria Gaming Chair, showcasing its ergonomic design and red finish.

2. Bezpečnostné informácie

• Pred montážou sa uistite, že sú všetky komponenty prítomné a nepoškodené. Nepoužívajte, ak niektoré diely chýbajú alebo sú poškodené.
• Follow assembly instructions precisely. Incorrect assembly can lead to instability and injury.
• Nestojte na stoličke. Používajte ju len na sedenie.
• Neprekračujte maximálnu nosnosť 150 kg (330 libier).
• Počas montáže držte deti a domáce zvieratá v bezpečnej vzdialenosti od stoličky.
• Nevystavujte stoličku priamemu slnečnému žiareniu alebo extrémnym teplotám, aby ste predišli degradácii materiálu.
• Pravidelne kontrolujte všetky skrutky a matice, či sú pevne utiahnuté. V prípade potreby ich dotiahnite.

3. Obsah balenia

Overte si, či sú v balení všetky nasledujúce komponenty:

• operadlo
• Seat Base with Armrests and Footrest mechanism
• Star Base (5-star aluminum base)
• Kolieska (5 kusov)
• Plynový zdvíhací valec
• Kryt plynového výťahu
• Lumbar Support Cushion with Massage Function (USB powered)
• Vankúš na opierku hlavy
• Montážny materiál (skrutky, podložky, imbusový kľúč)

4. Nastavenie a montáž

Follow these steps to assemble your HICON Vittoria Gaming Chair:

1. Pripevnite kolieska k hviezdicovej základni: Vložte každé z piatich koliesok do otvorov na konci každej nohy hviezdicového podstavca. Pevne zatlačte, kým nezacvaknú na miesto.


Image: Close-up of the OmniRoll casters, designed for hard floors and carpets, attached to the chair's stable base.

2. Vložte plynový výťah: Place the gas lift cylinder into the center hole of the assembled star base. Cover the gas lift with the telescopic plastic cover.


Image: Detail of the NitroLift gas lift, providing durability and a load capacity of up to 250 kg.

3. Pripevnite operadlo k základni sedadla: Align the backrest with the mounting brackets on the seat base. Secure it using the provided screws and Allen key. Ensure all screws are tightened evenly.
4. Place Assembled Seat onto Gas Lift: Zmontované sedadlo a operadlo opatrne umiestnite na plynový valec a uistite sa, že je vycentrované a stabilné.
5. Pripevnite vankúše: Secure the headrest cushion to the top of the backrest using its straps. Attach the lumbar support cushion to the lower backrest using its straps. Connect the USB cable from the lumbar cushion to a power source (e.g., power bank, USB adapter) for the massage function.

5. Návod na obsluhu

Your HICON Vittoria Gaming Chair offers several adjustable features for personalized comfort:

• Nastavenie výšky sedadla: To raise the seat, lift the lever located under the right side of the seat while taking your weight off the chair. To lower the seat, lift the lever while seated. Adjust until your feet are flat on the floor and your knees are at a 90-110 degree angle.
• Sklon operadla: Pull the lever on the right side of the chair (below the seat) to unlock the backrest. Lean back to your desired angle (between 90 and 170 degrees) and push the lever down to lock it in place.

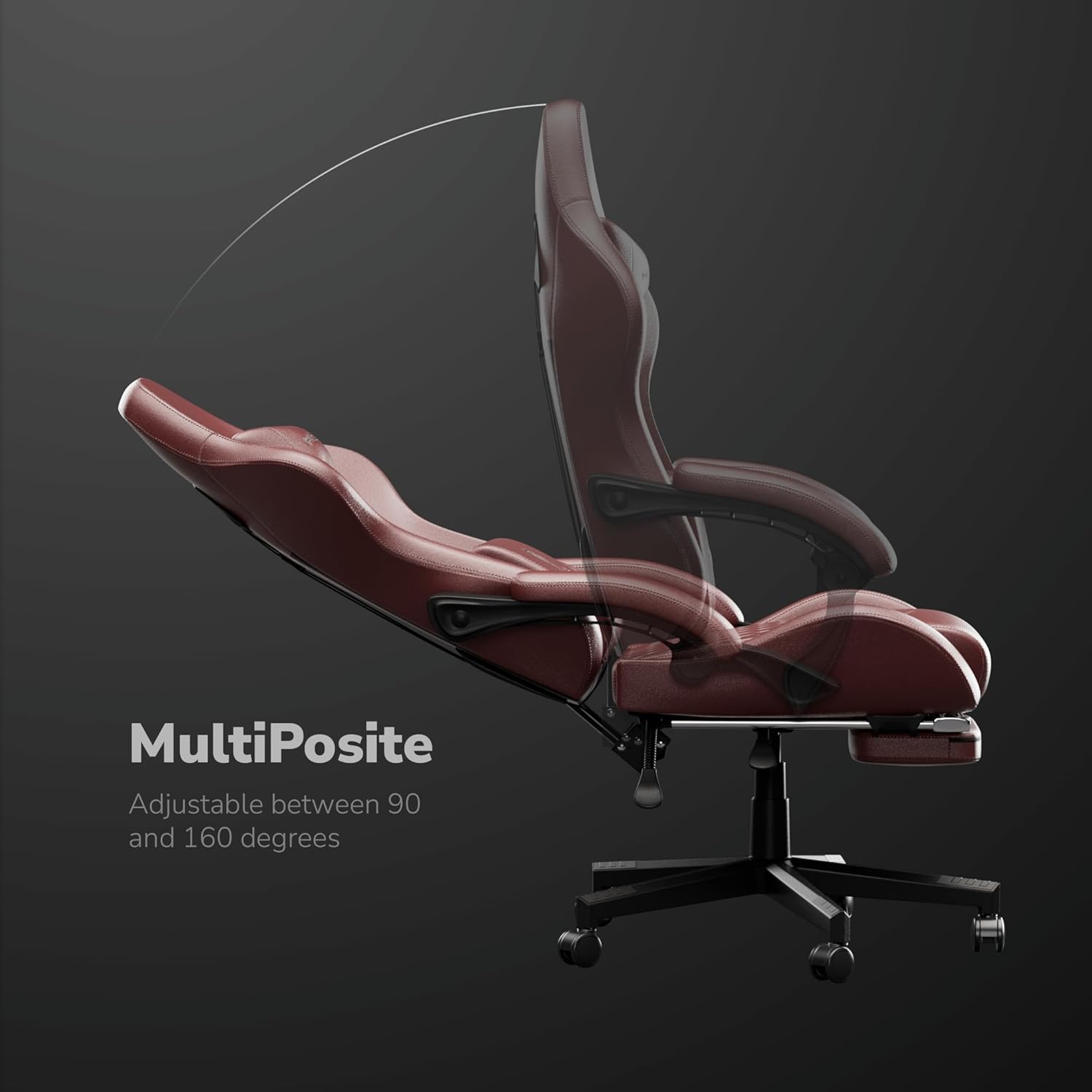

Image: The MultiPosite feature illustrates the adjustable recline range of the chair, from 90 to 160 degrees.

• Armrest Adjustment (Adapto Arm): The armrests can be adjusted in height and forward-backward. Locate the buttons or levers on the armrests to unlock and adjust them to your preferred position. Ensure your forearms rest comfortably and your elbows are at approximately a 90-degree angle.


Image: Close-up of the Adapto Arm, highlighting its adjustable height and forward-backward movement for optimal arm support.

• Lumbar Support Massage (PneuMassage): The lumbar cushion features a vibration massage mechanism. Connect the USB cable to a power source to activate the massage function. Adjust the cushion's position on the backrest for optimal lower back support and comfort.


Image: Detail of the PneuMassage lumbar cushion, featuring a vibration mechanism for enhanced comfort and support.

• Extendable Footrest (LegRest): To extend the footrest, pull it out from under the seat. To retract, push it back in until it is fully stored. Use the footrest for additional leg support when reclining.


Image: Close-up of the LegRest, providing foot support for comfort during extended sitting or reclining.

6. Údržba

• Čistenie: Povrchy z PU kože utrite mäkkou handričkouamp handričkou. Na odolné škvrny použite jemný mydlový roztok a potom utrite čistou,amp handričkou. Vyhýbajte sa agresívnym chemikáliám alebo abrazívnym čistiacim prostriedkom.


Image: Detail of the DuraBreathe material, highlighting its durable, waterproof, and easy-to-clean properties.

• Kontrola hardvéru: Periodically check all screws and bolts to ensure they are tight. Retighten as needed to maintain stability and safety.
• Starostlivosť o kolieska: Kolieska udržiavajte čisté od vlasov a nečistôt, aby ste zabezpečili ich plynulý pohyb.
• Vyhnite sa preťaženiu: Do not place excessive weight on the armrests or backrest.

7. Riešenie problémov

• Vŕzganie stoličky: Check all bolts and screws for tightness. Apply a small amount of silicone lubricant to moving parts if necessary.
• Problémy s nastavením výšky: Uistite sa, že páka plynového zdvíhacieho mechanizmu je úplne zaistená. Ak problém pretrváva, môže byť potrebné vymeniť valec plynového zdvíhacieho mechanizmu.
• Kolieska sa neotáčajú hladko: Remove any hair or debris wrapped around the caster wheels. Clean the wheels thoroughly.
• Operadlo sa nedá zaistiť: Verify that the recline lever is fully pushed down to lock the backrest in position.

8. Špecifikácie

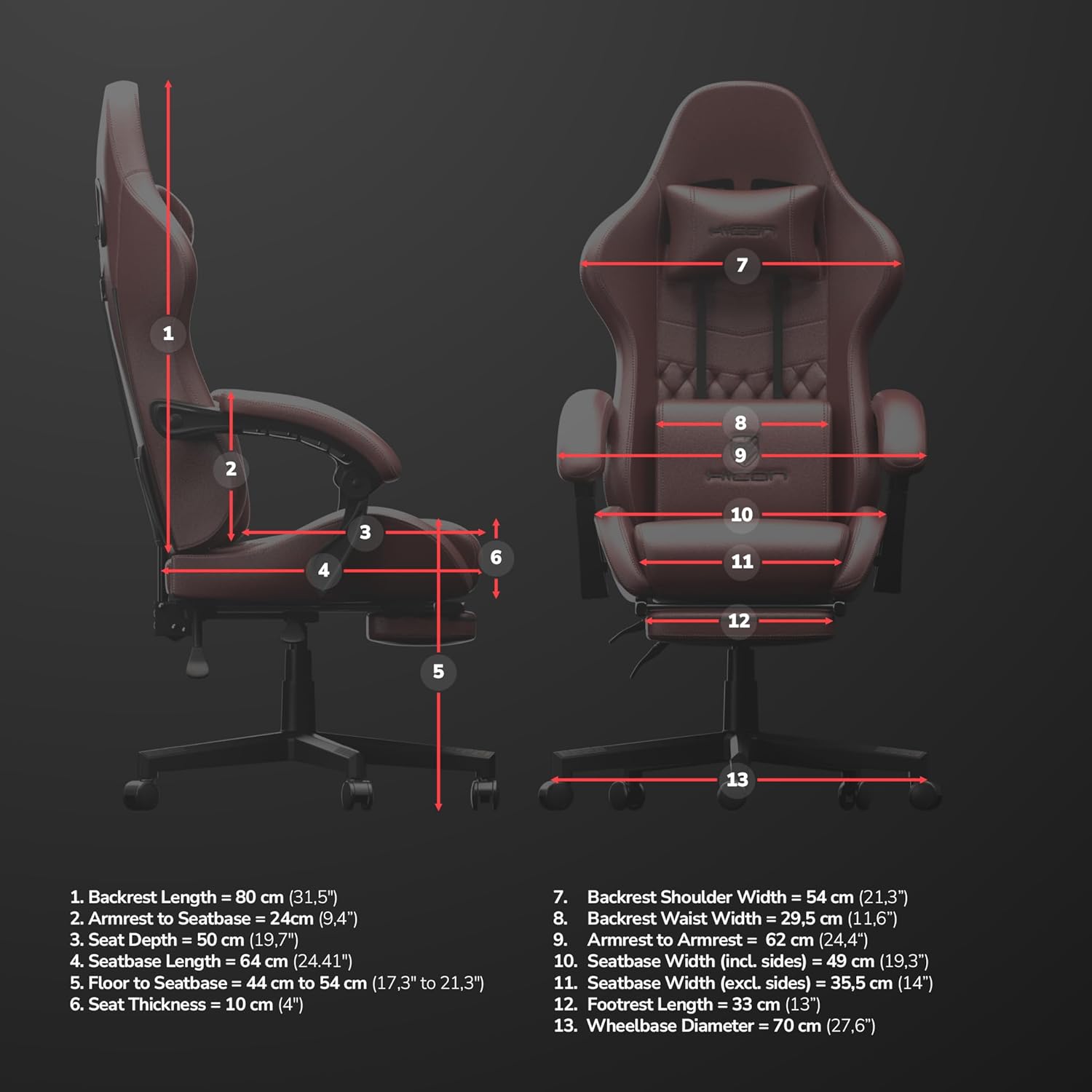

Image: Detailed dimensional diagram of the HICON Vittoria Gaming Chair, showing various measurements for reference.

9. Záruka a podpora

For warranty information or technical support, please refer to the documentation included with your purchase or contact the retailer/manufacturer directly. Keep your proof of purchase for warranty claims.
