Active Pixel 4G Solar Powered Dual Lens Security Camera

1. Úvod

This manual provides detailed instructions for the installation, operation, and maintenance of your Active Pixel 4G Solar Powered Dual Lens Security Camera. Please read this manual thoroughly before using the product to ensure proper function and safety. This camera is designed for outdoor surveillance, featuring 4G connectivity, solar power, dual lenses for 10x zoom, 2-way audio, and motion detection capabilities.

1.1 Obsah balenia

• 1x 4G Solar Camera (with included battery)
• 1x Návod na použitie
• 1x Screw Kit for installation
• 1x solárny panel

2. Bezpečnostné informácie

Observe the following safety precautions to prevent damage to the product or injury to yourself or others.

• Inštalácia: Ensure the camera is securely mounted to prevent falling. Avoid installing near flammable or explosive materials.
• Zdroj napájania: Use only the provided solar panel and integrated battery. Do not attempt to replace the battery with unapproved alternatives.
• Odolnosť voči vode: The camera is IP65/IP66 rated for water and dust resistance. However, avoid submerging the camera in water or exposing it to high-pressure water jets.
• teplota: Operate the camera within the specified temperature range of -15°C to 60°C.
• demontáž: Nepokúšajte sa fotoaparát rozoberať ani upravovať. Zruší sa tým záruka a môže dôjsť k poškodeniu alebo zraneniu.
• deti: Uchovávajte fotoaparát a jeho príslušenstvo mimo dosahu detí.

3. Produkt skončilview

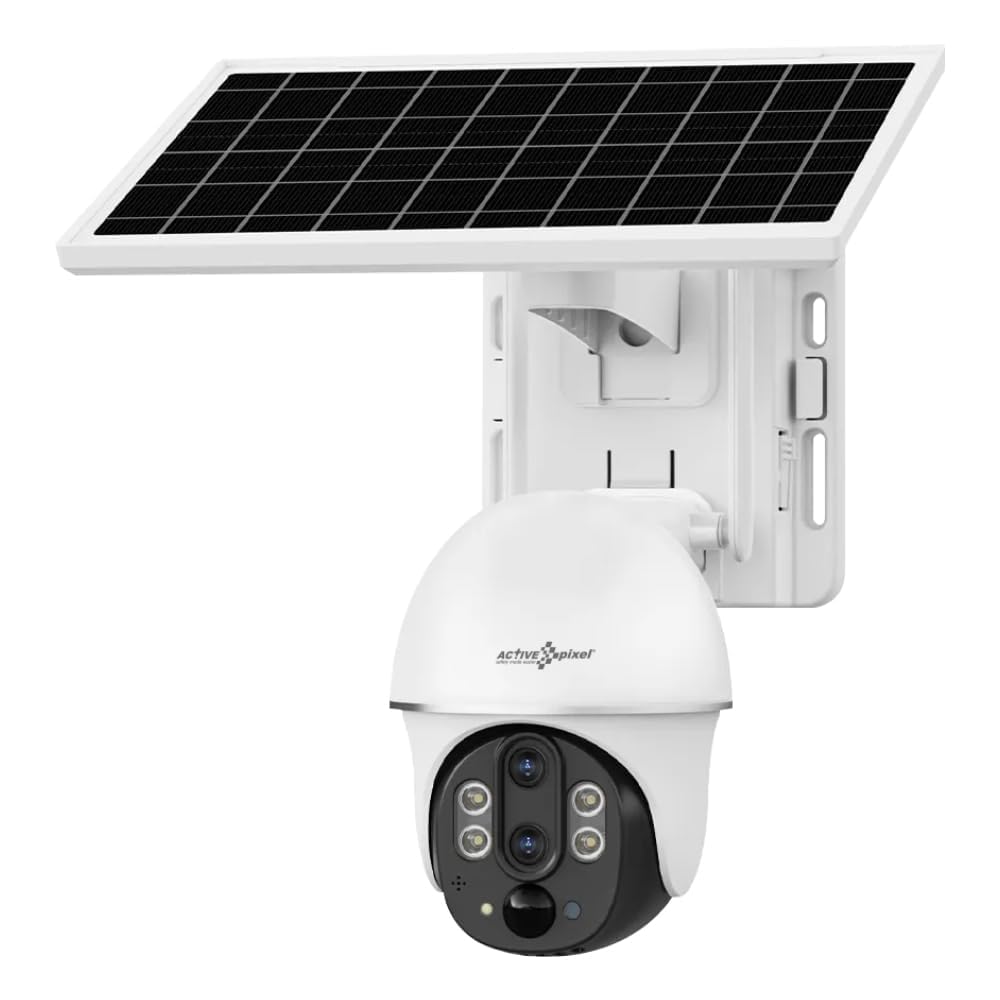

The Active Pixel 4G Solar Powered Dual Lens Security Camera is a robust surveillance solution. Key features include:

• Systém dvoch šošoviek: Provides 10x zoom capability (3x optical + 3.2x digital).
• 4G pripojenie: Operates on 4G LTE networks, ideal for locations without Wi-Fi. (Note: 4G Jio Sim Card Not Supported. VI and Airtel SIM recommended.)
• Solárne napájanie: Equipped with a 7W solar panel and 8000mAh battery for continuous operation.
• Vysoké rozlíšenie: 2MP+2MP sensors delivering 1080P Full HD video.
• Otáčanie, nakláňanie a priblíženie (PTZ): 355° horizontálne otáčanie a 90° vertikálne naklonenie pre pokrytie širokej oblasti.
• Inteligentná detekcia: PIR + Radar dual induction detection for human/animal detection.
• Obojsmerný zvuk: Vstavaný mikrofón a reproduktor pre komunikáciu.
• Farebné nočné videnie: Clear color night vision up to 50ft.
• Ukladací priestor: Supports local TF card (up to 128GB, not included) and cloud storage.
• Odolný voči poveternostným vplyvom: IP65/IP66 rated for outdoor use.

4. Nastavenie

4.1 Inštalácia karty SIM

1. Locate the SIM card slot on the camera body.
2. Insert a compatible 4G SIM card (VI or Airtel recommended) into the slot. Ensure the SIM card is correctly oriented.
3. Close the SIM card slot cover securely to maintain waterproofing.

4.2 Inštalácia aplikácie a nastavenie účtu

1. Download the "V380 Pro" app from your smartphone's app store (Android or iOS).
2. Otvorte aplikáciu a zaregistrujte si nový účet alebo sa prihláste, ak už nejaký máte.
3. Postupujte podľa pokynov v aplikácii a pridajte kameru. Zvyčajne to zahŕňa naskenovanie QR kódu na kamere alebo manuálne zadanie jej ID.

4.3 Montáž kamery a solárneho panela

1. Vyberte miesto: Select a location with good 4G signal strength and ample direct sunlight for the solar panel. The camera should be mounted at a height that provides optimal viewing angle and security.
2. Namontujte kameru: Use the provided screw kit to securely mount the camera to a wall or pole. Ensure the mounting surface is stable.
3. Montáž solárneho panelu: Mount the solar panel in a position where it receives maximum direct sunlight throughout the day. Adjust its angle for optimal charging efficiency.
4. Pripojte solárny panel: Connect the solar panel cable to the camera's charging port. Ensure the connection is secure and waterproof.

5. Návod na obsluhu

5.1 Naživo View a ovládanie PTZ

• Open the V380 Pro app and select your camera from the device list.
• Aplikácia zobrazí živý video prenos.
• Use the on-screen controls to pan (355° horizontal) and tilt (90° vertical) the camera.
• Pinch to zoom on the live feed to utilize the 10x dual lens zoom.

5.2 Obojsmerný zvuk

• Počas živého vysielania view, klepnite na ikonu mikrofónu a hovorte cez reproduktor fotoaparátu.
• Klepnutím na ikonu reproduktora si vypočujete zvuk z mikrofónu fotoaparátu.

5.3 Detekcia pohybu a upozornenia

• Access the camera settings in the V380 Pro app.
• Enable "Smart Detection" (PIR+Radar dual induction) for human/animal detection.
• Configure alert settings, including push notifications to your mobile phone.
• When motion is detected, the camera will automatically record the event and send an alert.

5.4 Nahrávanie a prehrávanie

• Miestne úložisko: Insert a TF card (up to 128GB, not included) into the camera's slot for local recording. Recordings can be accessed via the app.
• Cloudové úložisko: Subscribe to the cloud storage service through the V380 Pro app for alarm video storage.
• Komu view zaznamenané footage, navigate to the playback section in the app and select the desired date and time.

5.5 Nočné videnie

The camera automatically switches to night vision mode in low light conditions using its IR-CUT switch and 4pcs Double Core LEDs. It provides clear color night vision up to 50 feet (15 meters).

6. Údržba

• Čistenie: Pravidelne utierajte objektív fotoaparátu a solárny panel mäkkou handričkouamp handričkou, aby ste zabezpečili jasný obraz a efektívne nabíjanie. Nepoužívajte agresívne chemikálie.
• Starostlivosť o batérie: The integrated battery is designed for long life. Ensure the solar panel is clean and receives adequate sunlight for optimal charging. Avoid prolonged storage in extreme temperatures.
• Aktualizácie firmvéru: Check the V380 Pro app periodically for firmware updates. Keeping the firmware updated ensures optimal performance and security.
• Správa TF kariet: If using a TF card, periodically check its storage capacity and format it if necessary to maintain recording efficiency.

7. Riešenie problémov

8. Špecifikácie

9. Záruka a podpora

For warranty information and technical support, please refer to the contact details provided at the point of purchase or on the official Active Pixel website. The manufacturer is Glorious Digital Solution Pvt Ltd. For customer care, you may contact 9321367328.

Uschovajte si doklad o kúpe pre uplatnenie záruky.
