EPEVER LiFePO4 Lithium Battery User Manual

1. Úvod

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your EPEVER 25.6V 150Ah LiFePO4 Lithium Battery. Please read this manual thoroughly before using the product and keep it for future reference.

The EPEVER LiFePO4 battery is designed for reliable energy storage solutions in various applications, including RVs, boats, camping, and stationary energy systems. It features integrated Bluetooth for easy monitoring, a robust Battery Management System (BMS), and an innovative self-heating function for optimal performance in cold conditions.

Obrázok: Predná strana view of the EPEPOVER 25.6V 150Ah LiFePO4 Lithium Battery, showing its capacity and model number.

2. Bezpečnostné informácie

UPOZORNENIE: Nedodržanie týchto bezpečnostných pokynov môže mať za následok požiar, úraz elektrickým prúdom, vážne zranenie alebo poškodenie majetku.

• Do not open the sealed container. Vo vnútri sa nenachádzajú žiadne časti, ktoré by mohol opraviť používateľ.
• Neskratujte kontakty batérie. Môže to spôsobiť vážne poškodenie batérie a predstavovať nebezpečenstvo požiaru.
• Do not incinerate, crush, puncture, or disassemble the battery.
• Do not discard in fire or expose to excessive heat.
• Batériu neprebíjajte ani nevybíjajte. The integrated BMS protects against this, but ensure your charging system is compatible.
• Only use approved battery chargers specifically designed for LiFePO4 batteries.
• Počas nabíjania a vybíjania zabezpečte dostatočné vetranie.
• Uchovávajte mimo dosahu detí.

3. Produkt skončilview a funkcie

The EPEVER LiFePO4 battery is engineered for high performance and longevity, incorporating advanced features for safety and convenience.

3.1. Kľúčové vlastnosti

• A-Grade LiFePO4 Cells: Utilizes high-quality aluminum shell cells for superior performance and safety.
• Dlhá životnosť cyklu: Offers over 4000 charge cycles at 80% Depth of Discharge (DOD) at 25°C, ensuring an exceptionally long lifespan.
• Integrovaný systém správy batérií (BMS): Provides comprehensive protection against:
  • Ochrana proti prebitiu
  • Undercharge (deep discharge) protection
  • Teplotná ochrana
  • Ochrana proti skratu
  • Nadprúdová ochrana
• Integrated Self-Heating Function: Automatically warms the battery when temperatures drop below 0°C during charging, ensuring optimal performance and charging efficiency in cold environments.
• Bluetooth pripojenie: Allows for easy real-time monitoring and parameter adjustment via the "Xiaoxiang Electric" mobile application.
• Krytie IP65: Dustproof and water-resistant, making it suitable for various indoor and outdoor applications.
• Rozšíriteľný systém: Supports connection of up to 2 units in series and up to 4 units in parallel for increased voltage alebo kapacita.
• certifikácie: UN38.3, MSDS, IEC62619, CE RED, ROHS, ensuring safety and reliability.

Image: Illustration of A-Class LiFePO4 aluminum shell cells, highlighting 4000+ cycles, Bluetooth, Smart BMS, App Monitoring, and IP65 rating.

Image: Diagram illustrating the integrated self-heating function, showing automatic warming when temperatures are below 0°C during charging.

Image: Visual representation of the integrated BMS, detailing protections against overcharge, undercharge, temperature, short circuit, and overcurrent.

Image: The battery shown alongside a smartphone displaying the "Xiaoxiang Electric" app interface, demonstrating Bluetooth monitoring capabilities.

4. Nastavenie a inštalácia

4.1. Počiatočná kontrola

Upon receiving your battery, inspect it for any visible damage. If damage is found, contact your supplier immediately.

4.2. Pokyny pre pripojenie

The EPEVER LiFePO4 battery supports both parallel and series connections to meet various power requirements. Always ensure all batteries are at a similar State of Charge (SoC) before connecting them in parallel or series.

4.2.1. Paralelné pripojenie (max. 4 jednotiek)

For increased capacity while maintaining the nominal voltage, connect batteries in parallel. Connect all positive terminals together and all negative terminals together. Ensure all connecting cables are of appropriate gauge and length to minimize resistance.

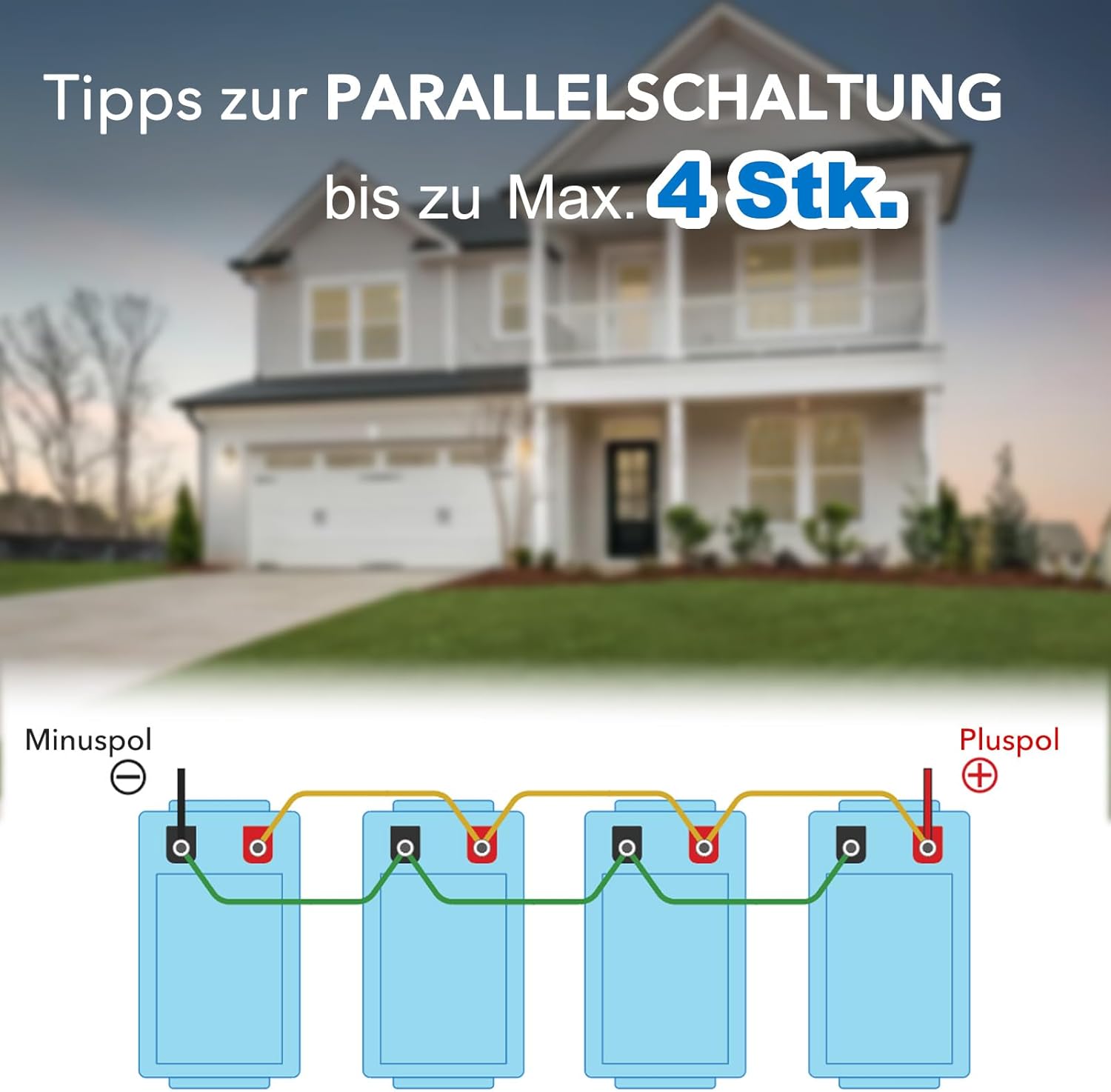

Image: Diagram illustrating how to connect up to 4 batteries in parallel, showing positive and negative terminals connected.

4.2.2. Series Connection (Max 2 Units)

Pre zvýšený objemtage, connect batteries in series. Connect the positive terminal of one battery to the negative terminal of the next. The remaining free positive and negative terminals will be your system's output. Do not exceed 2 units in series for this model.

Image: Diagram illustrating how to connect up to 2 batteries in series, showing the connection between positive and negative terminals.

4.3. Inštalácia a pripojenie aplikácie

The "Xiaoxiang Electric" app allows you to monitor your battery's status and adjust settings via Bluetooth.

1. Download the "Xiaoxiang Electric" app from your device's app store.
   • Download for iOS (Apple App Store)
   • Download for Android (Google Play Store)
2. Povoľte na svojom mobilnom zariadení Bluetooth.
3. Open the "Xiaoxiang Electric" app and follow the on-screen instructions to connect to your EPEVER battery.

Image: QR codes for downloading the "Xiaoxiang Electric" app from the Apple App Store and Google Play Store.

5. Návod na obsluhu

5.1. Nabíjanie

Use a compatible LiFePO4 charger. The integrated self-heating function will activate automatically if the battery temperature is below 0°C during charging, ensuring safe and efficient charging in cold conditions. Monitor charging status via the "Xiaoxiang Electric" app.

5.2. Vybíjanie

The battery can be discharged continuously up to 75A. The BMS will protect the battery from over-discharge. For optimal battery life, avoid consistently discharging to 0% DOD.

5.3. Monitoring with the App

The "Xiaoxiang Electric" app provides real-time data on your battery's performance, including:

• Stav nabitia (SoC)
• Voltage
• Prúd (nabíjanie/vybíjanie)
• Teplota
• Počet cyklov
• Individual Cell Voltages (if supported by app interface)

Refer to the app's internal help or user interface for detailed instructions on specific features and parameter adjustments.

6. Údržba

The EPEVER LiFePO4 battery is designed for minimal maintenance. However, following these guidelines will help ensure its longevity and optimal performance:

• Pravidelná vizuálna kontrola: Periodically check the battery and its terminals for any signs of damage, corrosion, or loose connections. Ensure terminals are clean and tight.
• Udržujte v čistote: Utrite batériu casing with a dry, clean cloth. Do not use solvents or abrasive cleaners.
• Kontrola teploty: While the battery has self-heating, avoid prolonged exposure to extreme temperatures (hot or cold) outside its operating range when not in use.
• Ukladací priestor: If storing the battery for an extended period, ensure it is charged to approximately 50-70% State of Charge (SoC) and stored in a cool, dry place. Recharge every 3-6 months to prevent deep discharge.
• Aktualizácie firmvéru: Check the "Xiaoxiang Electric" app periodically for any available firmware updates for the battery's BMS.

7. Riešenie problémov

Táto časť sa zaoberá bežnými problémami, s ktorými sa môžete stretnúť. V prípade problémov, ktoré tu nie sú uvedené, kontaktujte zákaznícku podporu.

8. Špecifikácie

Detailed technical specifications for the EPEVER 25.6V 150Ah LiFePO4 Lithium Battery.

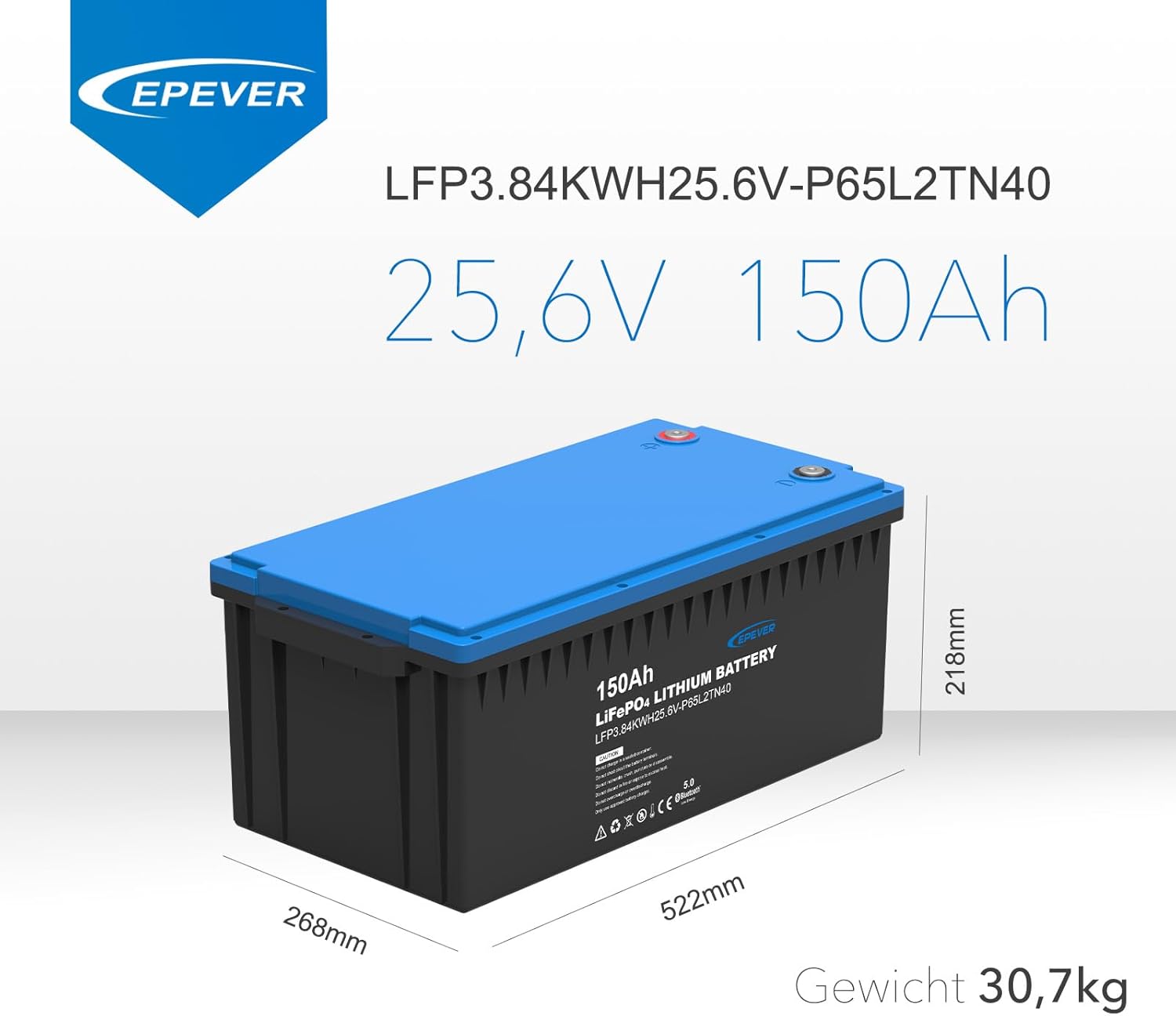

Image: Diagram showing the dimensions (length, width, height) and weight of the EPEVER 25.6V 150Ah LiFePO4 battery.

9. Záruka a podpora

This product is sold by SolarV GmbH. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact SolarV GmbH directly. Standard return policy is 30 days for refund/replacement.

For technical support, troubleshooting assistance, or warranty claims, please contact the seller or manufacturer through the platform where you purchased the product.

Predajca: SolarV GmbH

Výrobca: SolárnaV
