VASAGLE LSD144WZ02 Height Adjustable Desk User Manual

1. Úvod

Thank you for choosing the VASAGLE LSD144WZ02 Height Adjustable Desk. This manual provides essential information for the safe assembly, operation, and maintenance of your new desk. Please read these instructions carefully before use and retain them for future reference.

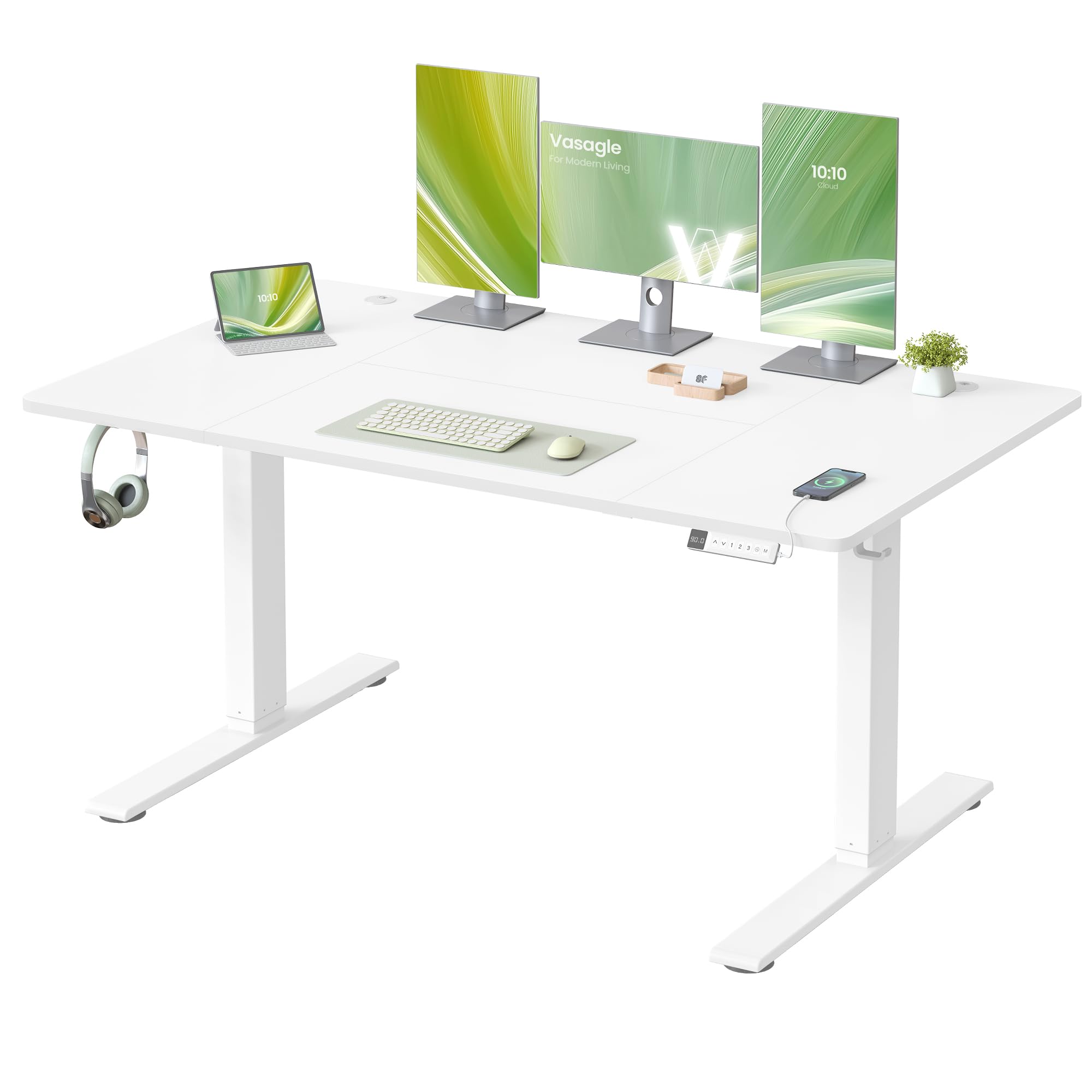

Figure 1: VASAGLE LSD144WZ02 Height Adjustable Desk

The VASAGLE LSD144WZ02 is a versatile electric standing desk designed to enhance your workspace with adjustable height, smart features, and efficient cable management. Its robust construction ensures stability and quiet operation, making it suitable for various office and study environments.

2. Bezpečnostné informácie

• Do not place the desk directly against a wall when raising or lowering it to prevent scratches.
• Stôl je určený len na vnútorné použitie.
• Chráňte všetky elektrické komponenty od tekutín.
• Do not place heavy objects exceeding the 80 kg (176 lbs) load capacity on the desk.
• Ensure all cables are properly routed and secured to prevent tripping hazards or damage during height adjustment.
• Počas prevádzky držte deti a domáce zvieratá v bezpečnej vzdialenosti od stola.

3. Obsah balenia

Pred montážou sa uistite, že všetky nižšie uvedené komponenty sú prítomné a nepoškodené:

• 1 x Electric Height Adjustable Desk
• 1 x Sada príslušenstva (vrátane skrutiek, náradia atď.)
• 1 x Návod na použitie

Ak niektoré diely chýbajú alebo sú poškodené, kontaktujte zákaznícku podporu.

4. Nastavenie a montáž

The VASAGLE LSD144WZ02 desk is designed for effortless assembly. Follow the illustrated instructions provided in the accessory kit. All parts are marked for easy identification.

1. Pripravte si dosku stola: Lay out the tabletop sections on a soft, clean surface to prevent scratches.
2. Attach Legs and Crossbar: Secure the desk legs and crossbar according to the diagrams.
3. Inštalácia podporných tyčí: Fasten the support bars to ensure structural integrity.
4. Pripojenie ďalších komponentov: Attach the control panel, power strip shelf, and any other accessories.

Obrázok 2: Postup montážeview

Ensure all screws are tightened securely before using the desk. It is recommended to have two people for assembly to ensure stability and ease of handling larger components.

5. Návod na obsluhu

5.1 Nastavenie výšky

The desk's height can be adjusted electrically from 72 cm (28.3 inches) to 120 cm (47.2 inches).

• Zdvihnite stôl: Stlačte a podržte Šípka hore tlačidlo na ovládacom paneli.
• Dolný stôl: Stlačte a podržte Šípka dole tlačidlo na ovládacom paneli.

Figure 3: Desk Height Adjustment for Sitting and Standing

5.2 Funkcie pamäte

The control panel features 3 memory buttons (1, 2, 3) to save and quickly recall your preferred desk heights.

• Uloženie výšky: Nastavte si stôl do požadovanej výšky. Stlačte tlačidlo M a potom stlačte jedno z pamäťových tlačidiel (1, 2, alebo 3) within 3 seconds. The height is now saved.
• Vyvolanie výšky: Jednoducho stlačte príslušné pamäťové tlačidlo (1, 2, alebo 3). Stôl sa automaticky presunie do uloženej polohy.

5.3 Sedavé pripomenutie

The sedentary reminder feature helps you maintain a healthy work routine by prompting you to change positions. To activate or deactivate this feature, refer to the detailed instructions in the included user manual. The reminder interval can typically be customized.

5.4 Nabíjací port USB-C

The control panel includes a 20W USB-C port for convenient and fast charging of your smartphones and other compatible devices.

Figure 4: Control Panel with USB-C Charging

Figure 5: USB-C Fast Charging Function

6. Funkcie Overview

6.1 Spacious Tabletop

The 140 x 80 cm (55.1 x 31.5 inches) tabletop offers a generous 33.3% more space compared to traditional desks. This ample surface is ideal for accommodating multiple monitors, laptops, and other office essentials, allowing for a comfortable viewing distance and an organized workspace.

Figure 6: Spacious Work Surface with Multiple Devices

Figure 7: Deep Surface for Optimal Viewing Vzdialenosť

6.2 Stable and Quiet Operation

The desk features reinforced legs and extended bases, combined with a high-quality motor, ensuring stable and smooth height adjustments. It can support a load of up to 80 kg (176 lbs) with a noise level of ≤ 48 dB, comparable to a quiet library environment.

Figure 8: Enhanced Stability with Reinforced Legs

Figure 9: Quiet Operation (≤ 48 dB)

6.3 Cable Management and Organization

The desk includes a spacious lower shelf designed to hold double or extra-long power strips. Two cable grommets ensure tidy routing of cables, and two side hooks provide convenient storage for headphones or bags, keeping your workspace clutter-free.

Figure 10: Integrated Cable Management

Figure 11: Thoughtful Cable Management Design

7. Údržba

• Čistenie: Utrite povrch stola mäkkou, damp plátno. Vyhnite sa abrazívnym čistiacim prostriedkom alebo agresívnym chemikáliám, ktoré môžu poškodiť povrch.
• Elektrické komponenty: Regularly check the power cord and connections for any signs of damage. Ensure they are securely plugged in.
• Presúvanie stola: When moving the desk, lower it to its lowest position and disconnect the power. Lift the desk rather than dragging it to prevent damage to the legs or floor.
• Spojovacie prvky: Pravidelne kontrolujte a doťahujte všetky skrutky a upevňovacie prvky, aby ste zabezpečili stabilitu stola.

8. Riešenie problémov

• Stôl sa nepohybuje:
  • Skontrolujte, či je napájací kábel bezpečne zapojený do stola aj do zásuvky.
  • Ensure there are no obstructions preventing the desk from moving.
  • If the control panel displays an error code, refer to the full user manual for specific troubleshooting steps.
• Wobbling at Max Height:
  • While the desk is designed for stability, some minimal wobbling may occur at maximum height, which is typical for two-leg standing desks. Ensure all fasteners are tight.
• Bzučivý zvuk:
  • A slight buzzing sound from the motor during adjustment is normal. The control panel may also emit a low sound when active, but it should enter standby mode and become silent after a few minutes of inactivity.

9. Špecifikácie

10. Záruka a podpora

This product comes with a limited warranty. For specific details regarding the warranty period and coverage, please refer to the documentation included with your purchase or contact the retailer.

Pravidlá vrátenia tovaru: Products purchased from Amazon.es are eligible for a refund/replacement within 30 days, subject to Amazon's return policy.

For technical assistance, missing parts, or any other inquiries, please contact VASAGLE customer support through the retailer's platform or visit the official VASAGLE webkontaktné informácie.
