Úvod
This manual provides essential instructions for the safe and efficient use of your iTEKIRO AC Adapter, Model HXY065-19. This adapter is designed to provide reliable power to compatible laptops, including various EVOO EVC156 series and AVITA Clarus Liber models. Please read this manual thoroughly before using the product.
Dôležité bezpečnostné informácie
- Voltage kompatibilita: This 19V adapter is NIE compatible with laptops requiring 5V or 12V input. Always verify the input voltage requirement on your laptop's bottom label or manufacturer's specifications before connecting the adapter. Incorrect voltage môže poškodiť vaše zariadenie.
- Len na použitie v interiéri: This adapter is designed for indoor use in dry conditions. Do not expose it to rain, moisture, or extreme temperatures.
- Správne pripojenie: Connect the adapter only to grounded outlets. Ensure the AC power cord is fully inserted into both the adapter and the wall outlet.
- Vyhnite sa preťaženiu: Nepreťažujte elektrické zásuvky ani predlžovacie káble.
- Starostlivosť o káble: Do not place heavy objects on the power cord or allow it to be pinched or sharply bent. Avoid placing the cord in high-traffic areas where it could be tripped over.
- Odpojenie: Always grasp the plug, not the cord, when disconnecting the adapter from the power source.
- Poškodenie: Do not use the adapter if the cord or plug is damaged. Contact customer support for assistance.
- Vetranie: Ensure adequate ventilation around the adapter during use. Do not cover it or place it in an enclosed space that could restrict airflow.
Obsah balenia
Overte si, či sú v balení všetky položky:
- iTEKIRO AC Adapter (Model HXY065-19)

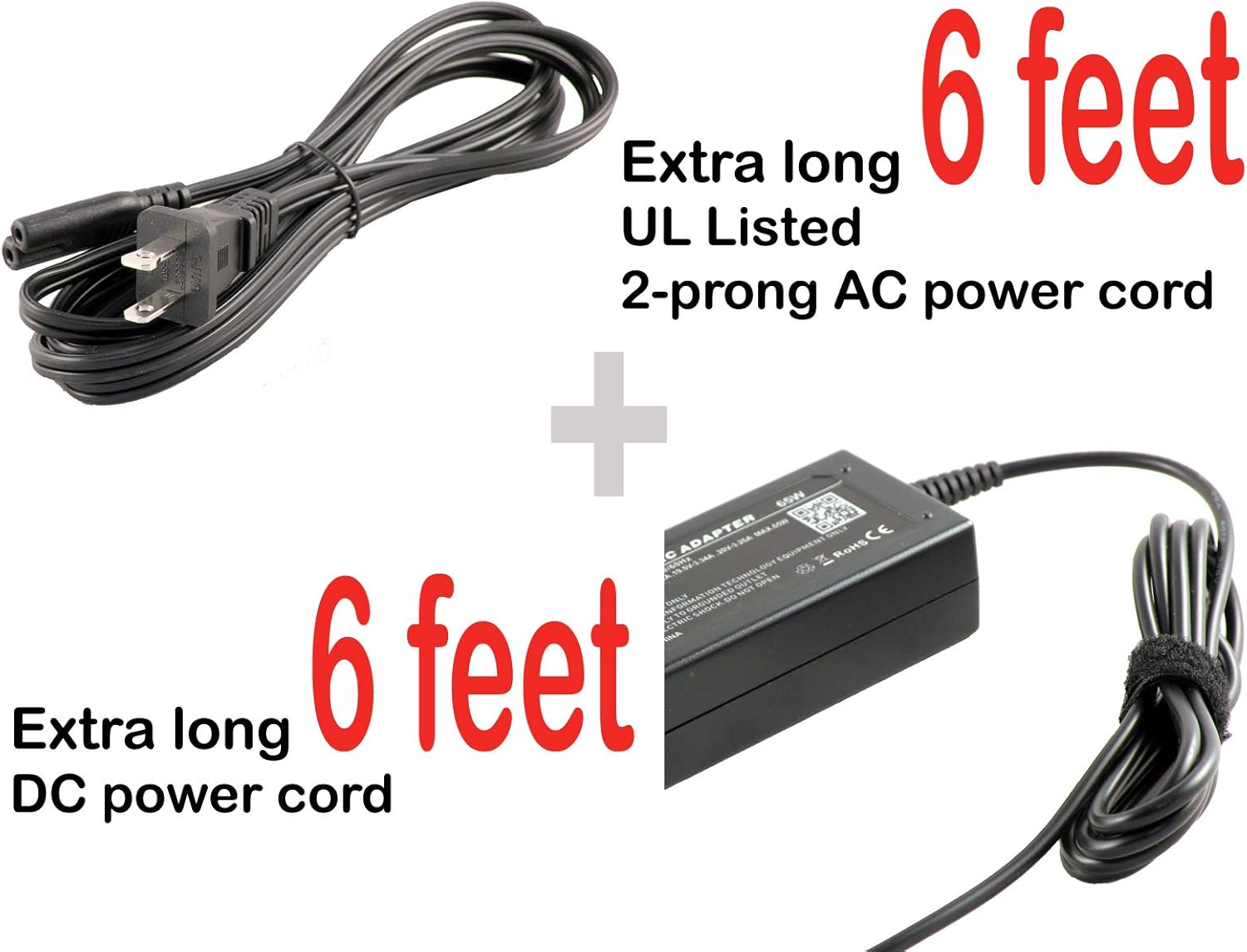

- 2-prong U.S. AC Power Cord (UL listed, 6 ft)
Pokyny na nastavenie
- Pripojenie napájacieho kábla: Insert the 2-prong U.S. AC power cord firmly into the AC input port on the iTEKIRO AC adapter.
- Pripojte k nástennej zásuvke: Plug the other end of the 2-prong AC power cord into a standard, grounded 100-240V AC wall outlet.
- Pripojenie k notebooku: Carefully insert the proprietary barrel plug of the DC output cord into the power input port on your compatible laptop. Ensure the connection is secure.
- Overenie napájania: Once connected, the LED power indicator on the adapter should illuminate, indicating that power is being supplied.
Návod na obsluhu
The iTEKIRO AC Adapter is designed for simple plug-and-play operation:
- Once properly connected to a power source and your laptop, the adapter will automatically begin supplying power and charging your laptop's battery (if applicable).

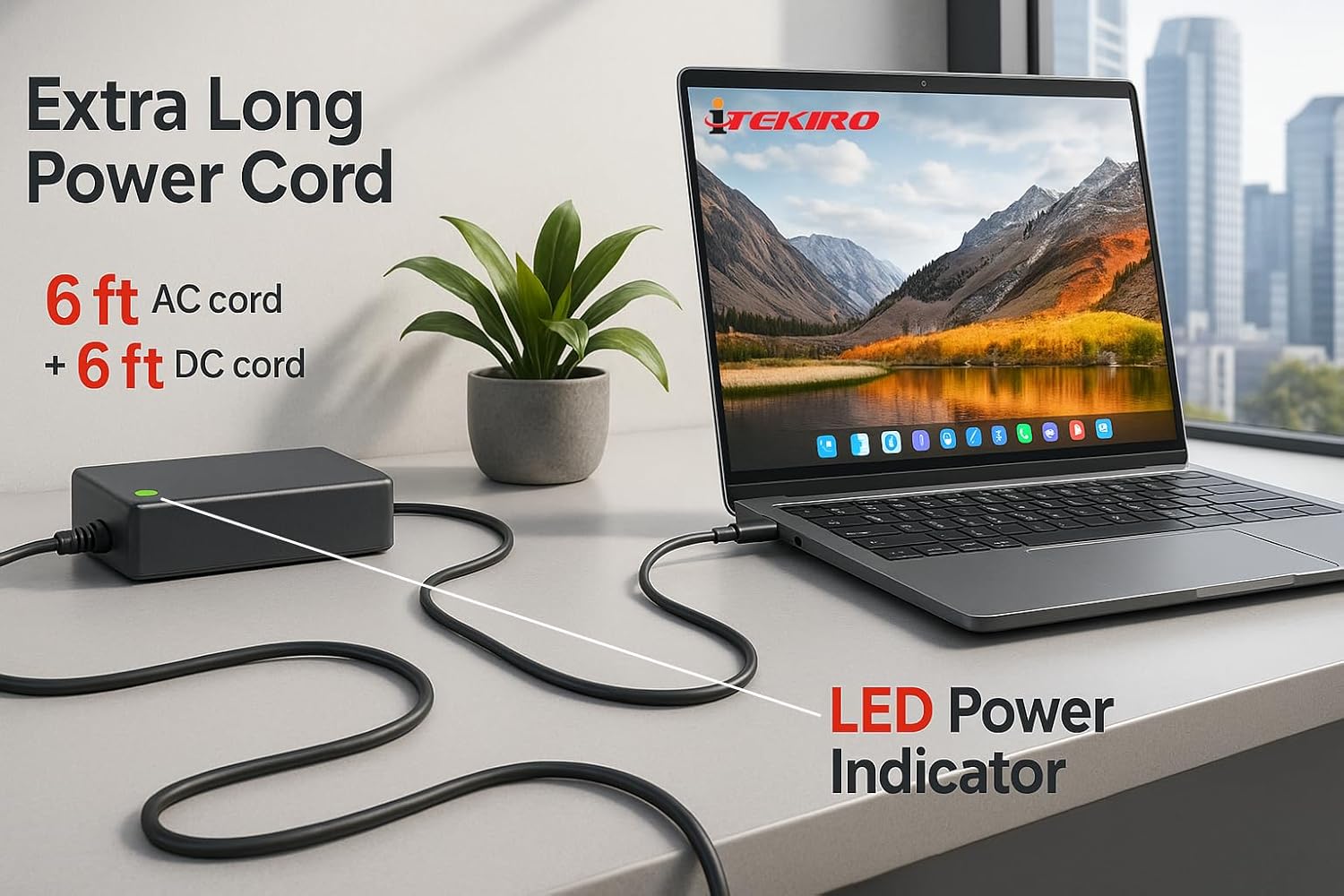

- The adapter features an LED indikátor napájania. When the adapter is receiving power and functioning correctly, this LED will illuminate (typically green).
- The extra-long 6 ft AC power cord and 6 ft DC power cord provide flexibility in positioning your laptop and adapter.
Údržba
To ensure the longevity and optimal performance of your iTEKIRO AC Adapter, follow these maintenance guidelines:
- Čistenie: Disconnect the adapter from all power sources before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or solvents.
- Ukladací priestor: When not in use, store the adapter in a cool, dry place. Avoid tightly wrapping the cords, as this can cause damage over time. Use the included hook-and-loop fastener to neatly bundle the cords.
- Kontrola: Periodically inspect the power cords and adapter casing for any signs of damage, such as cuts, fraying, or cracks. If damage is found, discontinue use and replace the adapter.
- Podmienky prostredia: Nevystavujte adaptér extrémnym teplotám, priamemu slnečnému žiareniu alebo vysokej vlhkosti.
Riešenie problémov
If you encounter issues with your iTEKIRO AC Adapter, refer to the following common troubleshooting steps:
| Problém | Možná príčina | Riešenie |
|---|---|---|
| Adapter LED is off, laptop not charging. | No power from wall outlet; loose connection; damaged cord/adapter. |
|
| Laptop not charging, but adapter LED is on. | Nesprávny objtage/amperage; laptop's charging port issue; laptop battery issue. |
|
| Adaptér sa zdá byť nadmerne horúci. | Poor ventilation; adapter overload; internal fault. |
|
If these steps do not resolve the issue, please contact iTEKIRO customer support.
Špecifikácie
| Značka | iTEKIRO |
| Číslo modelu | HXY065-19 |
| Vstupné objtage | 100 – 240 voltov (striedavý prúd) |
| Výstupný objemtage | 19 volty (DC) |
| Wattage | 65 wattov |
| Typ konektora | Proprietary Barrel Plug |
| Kompatibilné zariadenia | Laptops (EVOO EVC156 series, AVITA Clarus Liber series, etc., requiring 19V) |
| Špeciálna funkcia | Long Power Cord (6 ft AC + 6 ft DC) |
| Bezpečnostná certifikácia | UL Listed (AC power cord) |
| Farba | Čierna |
| Hmotnosť položky | 4 pounds (Note: This weight is as provided in product data.) |
Záruka a podpora
Your iTEKIRO AC Adapter comes with comprehensive coverage:
- Záruka vrátenia peňazí: A full money-back guarantee is included.
- Replacement Coverage: One year of hassle-free replacement coverage is provided.
For warranty claims, technical assistance, or any product-related inquiries, please contact iTEKIRO customer support through the retailer where the product was purchased or visit the official iTEKIRO webkontaktné informácie.
