Úvod
This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your Samsung QN55QN90FAFXZA 55 Inch Neo QLED 4K Smart TV and accompanying HW-QS700F 3.1.2 Ch Dolby Atmos Soundbar and Subwoofer. Please read this manual thoroughly before using your products to ensure safe and correct usage.

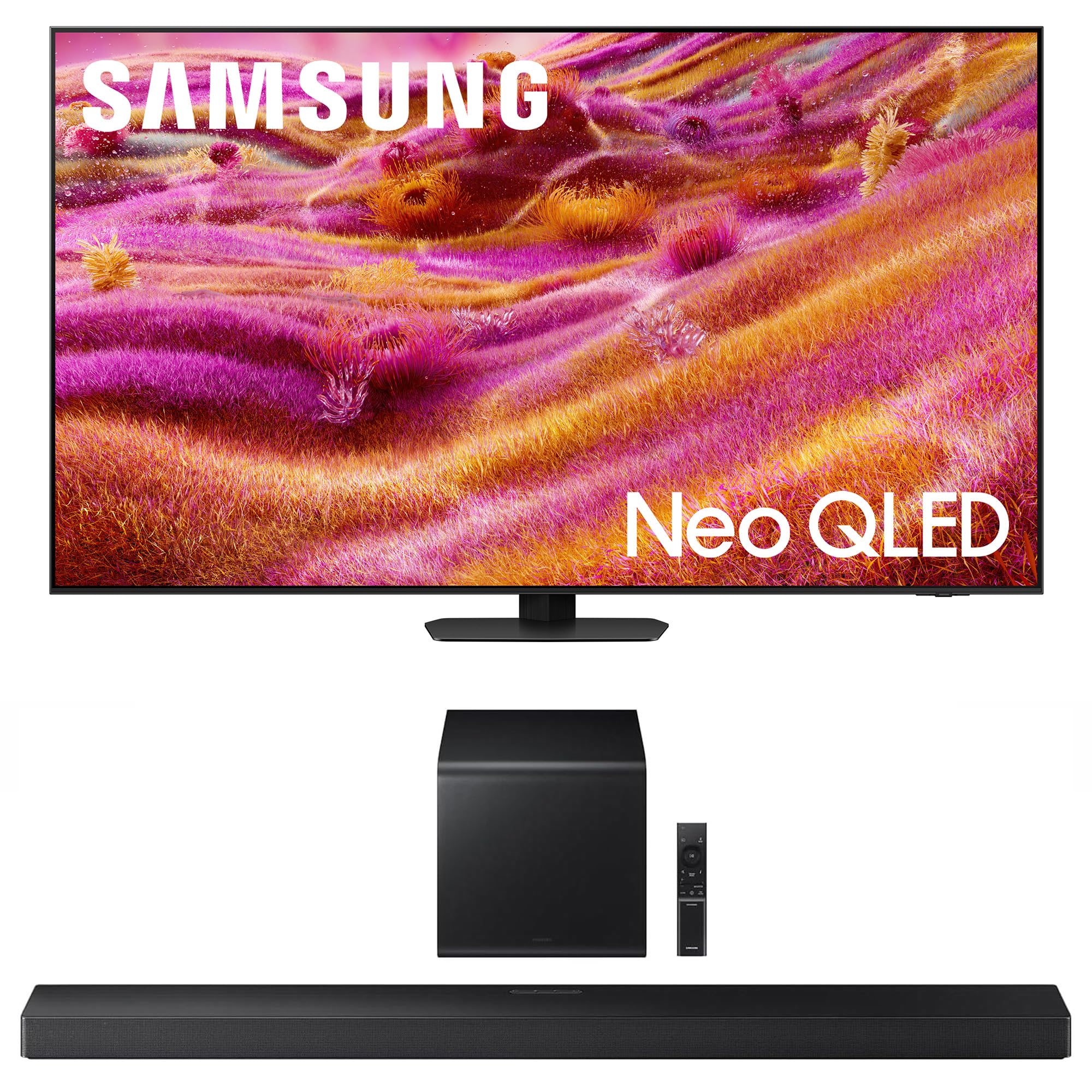

Figure 1: Samsung QN55QN90FAFXZA 55 Inch Neo QLED 4K Smart TV.
Nastavenie
1. Rozbalenie
Carefully remove all components from the packaging. Ensure all parts listed in the packing list are present. Retain packaging materials for future transport or service needs.
2. TV umiestnenie
The TV dimensions are approximately 9.3 x 48.3 x 30.2 inches (D x W x H) and it weighs 45.4 pounds. Ensure the placement surface is stable and can support the weight. For wall mounting, the TV supports VESA 200mm x 200mm standards. Ensure proper ventilation around the TV.
Obrázok 2: Predná strana view of the Samsung QN55QN90FAFXZA TV.
Obrázok 3: Strana view ilustrujúci štíhly profesionálny televízorfile.
3. Soundbar and Subwoofer Placement
The HW-QS700F Soundbar features a 'Convertible Fit' design, allowing it to be mounted flat against a wall or laid flat on a table. The soundbar is approximately 45.67 inches wide, 2.0 inches tall, and 4.72 inches deep. The compact subwoofer measures approximately 9.8 inches wide, 9.91 inches tall, and 9.8 inches deep, designed to fit discreetly behind furniture.
Figure 4: Samsung HW-QS700F Soundbar and Subwoofer.
Figure 5: 'Convertible Fit' feature for flexible soundbar placement.
4. Spojenia
The TV and Soundbar offer various connectivity options:
- HDMI: The TV has 4 HDMI ports. The soundbar supports HDMI Input & Output (ARC). Use HDMI for optimal audio and video quality.
- Optické: An optical port is available for audio connection.
- USB: The TV has 2 USB-A ports (5V 0.5A and HDD 5V 1A).
- Ethernet (LAN): Pre káblové sieťové pripojenie.
- Bezdrôtové: Both devices support Wi-Fi 5 and Bluetooth audio. The soundbar also supports Apple AirPlay 2, Chromecast built-in, and Spotify Connect.
- RF: Pre pripojenie antény/kábla.
For the soundbar, it is recommended to use an HDMI cable for connection to the TV to avoid input delay issues that can occur with Bluetooth audio for TV sound.
5. Počiatočné zapnutie a základné nastavenia
After connecting all necessary cables, plug in the TV and Soundbar to a power outlet. Follow the on-screen instructions for initial setup, including network connection and basic picture/sound modes. The TV features an NQ4 AI Gen3 Processor for enhanced 4K picture and dynamic sound.
Návod na obsluhu
1. Funkcie inteligentnej televízie (operačný systém Tizen)
Your Samsung TV runs on the Tizen Smart TV platform, providing access to a wide range of streaming services and apps. Supported internet services include Netflix, Prime Video, Disney+, Hulu, Apple TV, YouTube, HBO Max, Peacock, Sling, and more. You can download additional apps from the app store.
2. Nastavenia obrazu
Access the Picture menu to adjust various display settings:
- Režim obrazu: Select from Optimized, EyeComfort, or other presets.
- Expertné nastavenia: Fine-tune Brightness, Contrast, Sharpness, Color, Tint (G/R), Picture Clarity Settings, Local Dimming (Standard), Contrast Enhancer (High), Film Mode (Off), Color Tone (Standard), White Balance, Gamma (BT.1886), Shadow Detail, Color Space Settings (Native), and Smart Calibration.
Figure 6: 4K AI Upscaling Pro enhances content to impressive 4K.
Figure 7: NQ4 AI Gen3 Processor for advanced picture and sound.
3. Nastavenia zvuku
Adjust audio output and modes:
- Zvukový výstup: Choose between TV Speaker or Soundbar.
- Režim zvuku: Select Standard, Amplify, or other available modes.
- Expertné nastavenia: Adjust Balance, Equalizer, HDMI-eARC Mode, Digital Output Audio Format, Digital Output Audio Delay, Dolby Atmos, Auto Volume, Sound Feedback, Simultaneous Opt, and Reset Sound.
4. Q-Symphony Pro
If you have a compatible Samsung TV (Y2022-2025 models), Q-Symphony Pro allows the TV's built-in speakers and the soundbar to operate simultaneously, creating a more immersive audio experience. Connect the soundbar via HDMI or optical for this feature.
Video 1: Samsung QN90F Series TV Product Review. This video highlights the TV's features including Q-Symphony, which integrates the TV's speakers with a compatible soundbar for a richer audio experience.
5. Glare Free Screen
The Neo QLED display features a Glare Free technology, designed to minimize reflections and distractions, ensuring clear viewaj v jasne osvetlených miestnostiach.
Figure 8: Glare Free technology reduces reflections for optimal viewing.
6. Herné funkcie
The TV supports a 120Hz (up to 165Hz) refresh rate, AI Motion Enhancer Pro, and Motion Xcelerator 165Hz for smooth, responsive gaming. Game Mode settings can be configured for an optimized gaming experience.
7. Kompatibilita s hlasovým asistentom
The TV is compatible with multiple voice assistants, including Google Home and Amazon Alexa, allowing for hands-free control of your TV and smart home devices.
Údržba
1. Cleaning Your Screen
To clean the screen, gently wipe it with a soft, lint-free cloth. For stubborn marks, use a screen-specific cleaning solution applied to the cloth, not directly to the screen. Avoid harsh chemicals or abrasive materials.
Obrázok 9: Prample of screen cleaning products.
2. Aktualizácie softvéru
Periodically check for and install software updates to ensure your TV and Soundbar have the latest features and performance enhancements. This can usually be done through the TV's settings menu under 'Support' or 'Software Update'.
3. Eco Sensor and Power Saving
The TV includes an Eco Sensor and Auto Power Saving/Off features to help reduce energy consumption. These can be configured in the General & Privacy settings.
Riešenie problémov
If you encounter issues with your Samsung TV or Soundbar, try the following basic troubleshooting steps:
- Bez napájania: Ensure both the TV and Soundbar are securely plugged into a working power outlet. Check the power button on the remote and the devices themselves.
- Žiadny obraz/zvuk: Verify all HDMI and audio cables are correctly connected. Check the input source on your TV.
- Slabá kvalita obrazu: Adjust picture settings (Brightness, Contrast, etc.). Ensure your content source is high-quality.
- Sound Delay (Bluetooth): If using Bluetooth for TV audio, some input delay may occur. Consider using an HDMI ARC or optical connection for synchronized sound.
- Diaľkové ovládanie nefunguje: Check the remote's battery (if applicable) or ensure it's charged (BT SolarCell Remote). Point the remote directly at the TV.
- Problémy so sieťou: Check your Wi-Fi connection or Ethernet cable. Restart your router.
For more detailed troubleshooting, refer to the on-screen 'Support' menu or the Samsung webstránky.
Špecifikácie
Samsung QN55QN90FAFXZA 55 Inch Neo QLED 4K Smart TV
- Veľkosť obrazovky: 55 palca
- Technológia displeja: Neo QLED
- Rozlíšenie: 4K
- Obnovovacia frekvencia: 120 Hz (až 165 Hz)
- procesor: Procesor NQ4 AI Gen3
- Špeciálne vlastnosti: AI Motion Enhancer Pro, Bez odleskov, Auto HDR Remastering Pro, Širokouhlý Viewing Angle, Ultimate UHD Dimming, Real Depth Enhancer Pro, Motion Xcelerator 165Hz, Film Mode, 4K AI Upscaling Pro, Color Booster Pro, Dolby Atmos, OTS+, Q-Symphony Pro, Bluetooth Audio, 360 Audio, Tizen Smart TV, Multiple Voice Assistant Compatible, Samsung Health, Eco Sensor, Auto Power Saving/Off, BT SolarCell Remote
- Pripojenie: HDMI (4 ports), USB-A (2 ports), Ethernet, RF, Wi-Fi 5, Bluetooth
- Podporované internetové služby: Netflix, Prime Video, Disney+, Hulu, Apple TV, YouTube, HBO Max, Peacock, Sling a ďalšie
- Rozmery (DxŠxV): 9.3 x 48.3 x 30.2 palca
- Hmotnosť položky: 45.4 libry
- Farba: Titánová čierna
- Držiak VESA: Rozmer 200 mm x 200 mm
- Energetická účinnosť: Vyhovuje požiadavkám Energy Star
Soundbar a subwoofer Samsung HW-QS700F s 3.1.2 kanálmi a Dolby Atmos
- Sound Channels: True 3.1.2 Ch Sound
- Audio vlastnosti: Dolby Atmos, Up-firing speakers, Multidimensional sound
- Dizajn: Convertible Fit (wall or table placement)
- Pripojenie: HDMI Input & Output (ARC), Optical, Bluetooth, Wi-Fi, Apple AirPlay 2, Chromecast built-in, Spotify Connect
- Soundbar Dimensions (WxHxD): 45.67" x 2.0" x 4.72" (approximate, from video)
- Subwoofer Dimensions (WxHxD): 9.8" x 9.91" x 9.8" (approximate, from video)
Video 2: Samsung HW-QS700F Soundbar Product Video. This video provides an overview of the soundbar's design, features, and connectivity options.
Informácie o záruke
For detailed warranty information regarding your Samsung TV and Soundbar, please refer to the warranty card included in your product packaging or visit the official Samsung webZáručné podmienky sa môžu líšiť v závislosti od regiónu a produktu.
Podpora
If you require further assistance or have problems operating your device, please contact Samsung customer support:
- Webmiesto: Navštívte www.samsung.com, then select your country.
- Call centrum: You can find the latest phone number of your local Samsung Call Center on the webstránky.
Product information such as Model Code (QN75QN90BAFXZA), Serial Number (0DCD3CBW901644A), Software Version (T-PTMAKUCC-1602.3, BT-S), and Status Code (40301_AD19BAE18_IL18) can be found in the 'About This TV' section of your TV's settings.
