IKT Self-Cleaning Bottom Loading Water Cooler Dispenser with Ice Maker

Úvod

Thank you for choosing the IKT Self-Cleaning Bottom Loading Water Cooler Dispenser with Built-in Ice Maker. This manual provides important information for the safe operation, installation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before use and retain it for future reference.

Dôležité bezpečnostné informácie

• Dávkovač vždy umiestnite na rovný a stabilný povrch.
• Zabezpečte správne vetranie okolo jednotky.
• Neprevádzkujte dávkovač s poškodeným napájacím káblom alebo zástrčkou.
• Keep children away from the hot water dispenser area due to the risk of burns. Utilize the child safety lock.
• Pred čistením alebo akoukoľvek údržbou odpojte jednotku zo siete.
• Toto zariadenie je určené iba na použitie v interiéri.

Koniec produktuview

The IKT water cooler dispenser provides hot, cold, and room temperature water, along with a built-in ice maker. It features a bottom-loading design for easy bottle replacement and a self-cleaning function for hygiene.

Obrázok 1: Predná strana view of the IKT Water Cooler Dispenser.

Figure 2: Close-up of the control panel with indicator lights for ice making, child lock, lack of water, ON/OFF, ECO mode, hot water, fresh water, and cold water.

Figure 3: Illustration of the 3-in-1 functionality: Hot Water, Cold Water, Room Temperature Water, and Ice Cubes.

Nastavenie a inštalácia

1. Rozbalenie

• Opatrne vyberte dávkovač z obalu.
• Inspect the unit for any shipping damage. Contact your retailer if damage is found.
• Odstráňte všetky baliace materiály vrátane pásky alebo ochrannej fólie.

2. umiestnenie

• Place the dispenser on a level, sturdy surface capable of supporting its weight when full.
• Ensure there is at least 4 inches (10 cm) of clearance from walls to allow for proper ventilation.
• Vyhnite sa priamemu slnečnému žiareniu alebo zdrojom tepla.
• Do not place in an area where the temperature will drop below 50°F (10°C).

Figure 4: Product dimensions for placement reference: 16.54 inches (D) x 12.2 inches (W) x 40.75 inches (H).

3. Water Bottle Installation (Bottom Load)

1. Otvorte dvierka spodnej skrinky.
2. Remove the cap from a standard 3 or 5-gallon water bottle.
3. Insert the probe from the dispenser into the water bottle opening. Ensure the probe is fully inserted.
4. Zasuňte fľašu s vodou do skrinky a zatvorte dvierka.
5. Zapojte dávkovač do uzemnenej elektrickej zásuvky.
6. Allow approximately 15-20 minutes for the water tanks to fill and the water to reach desired temperatures before dispensing.

Figure 5: Illustration of a 5-gallon water bottle being placed into the bottom loading compartment.

Figure 6: Diagram showing the bottom loading mechanism and water being drawn upwards.

Návod na obsluhu

1. Výdaj vody

• Studená voda: Place your cup under the cold water spigot and press the cold water button/lever.
• Izbová teplota vody: Place your cup under the room temperature water spigot and press the room temperature water button/lever.
• Hot Water (with Child Safety Lock): To dispense hot water, first press and hold the child safety lock button, then press the hot water button/lever. Release the child safety lock button once hot water begins to flow.

Figure 7: The child safety lock feature, requiring a two-step process to dispense hot water.

2. Funkcia výroby ľadu

• The dispenser has a built-in ice maker that produces bullet-shaped ice.
• Ice production starts automatically when the ice-making function is enabled.
• The unit can produce up to 22 lbs of ice daily and stores approximately 0.88 lbs.
• Poznámka: This unit does not keep ice frozen. Ice will melt if not used, and the water will return to the reservoir for new ice production.

Figure 8: Details on ice production: 7 minutes per cycle, 9 pieces per cycle, 22 lbs daily capacity. Note that ice is not kept frozen.

Obrázok 9: Interný view showing the ice making mechanism and the UV lamp in the cold water reservoir.

3. Energy Saving Mode (ECO Function)

• Press the "ECO" button on the control panel to activate the energy-saving mode.
• In ECO mode, the machine will stop heating water at night to conserve energy.

Figure 10: The dispenser operating in low light, demonstrating the illuminated dispensing area, which can be managed with the ECO mode.

Údržba a čistenie

1. Funkcia samočistenia

• To activate the self-cleaning function, press and hold the ice-making button for 3 seconds.
• The indicator light will blink, and the power light will remain on during the cleaning cycle.
• The machine will automatically shut off after approximately 10 minutes.
• A UV lamp is located in the cold water reservoir for enhanced sanitation.

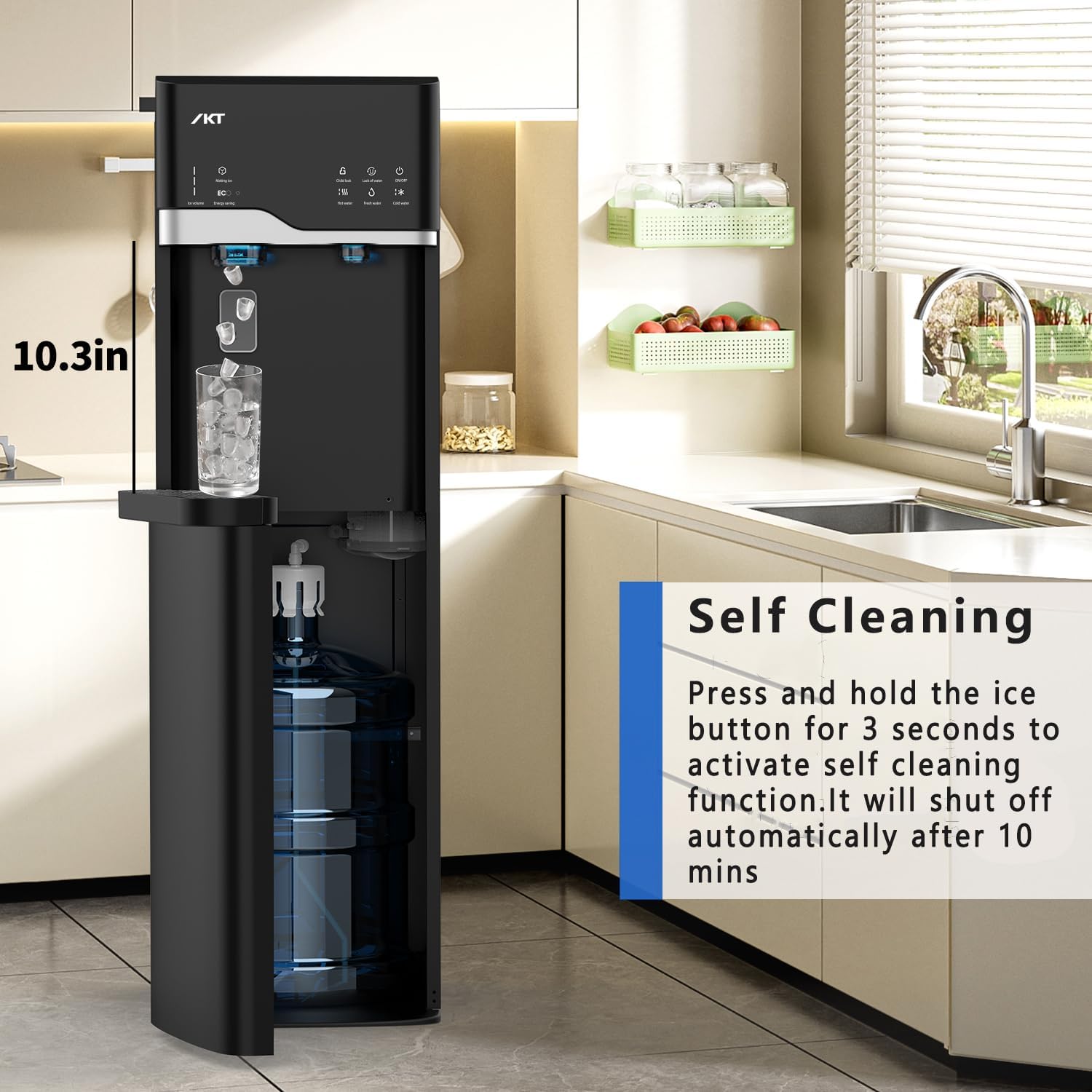

Figure 11: Instructions for activating the self-cleaning function by pressing the ice button for 3 seconds. The cycle lasts 10 minutes.

Figure 12: Diagram illustrating the UV-infused cleaning technology, which helps reduce contaminants and improve water taste.

2. Čistenie odkvapkávacej misky

• The removable drip tray should be emptied and cleaned regularly to prevent overflow and maintain hygiene.
• Simply slide out the tray, empty any accumulated water, wash with mild soap and water, rinse thoroughly, and replace.

Riešenie problémov

Špecifikácie

Inštruktážne videá

Záruka a podpora

For warranty information or technical support, please refer to the documentation included with your purchase or contact IKT customer service directly. Contact details are typically available on the manufacturer's official webstránke alebo prostredníctvom vášho predajcu.

Please have your model number (IKTLYCZ629BBK) and purchase date ready when contacting support.
